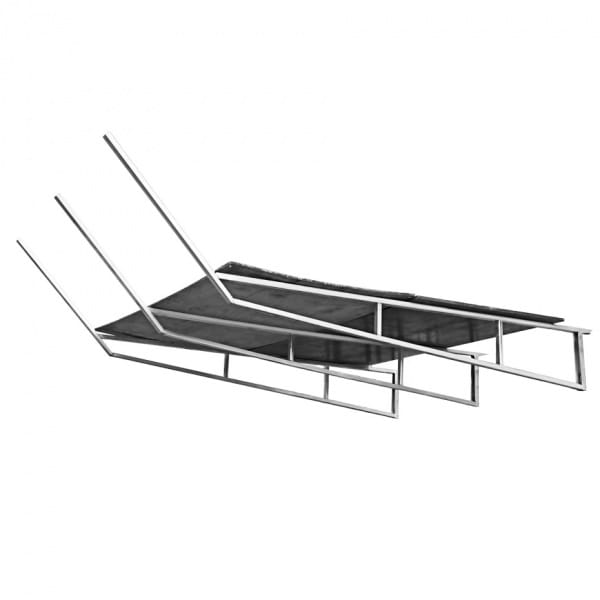

Secondary Protection Tray

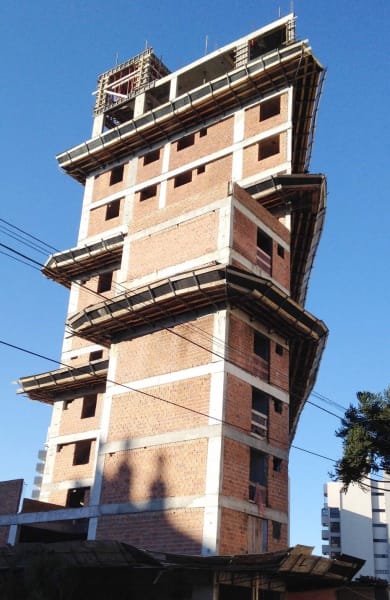

Above the first belt of the Primary Protection Trays you will need to use the secondary protection tray, which should be installed every three floors.

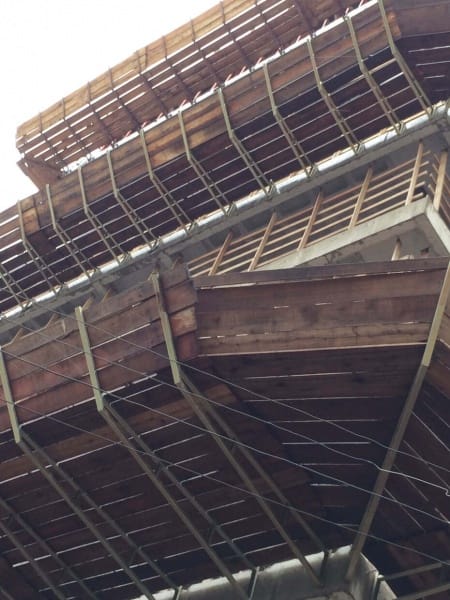

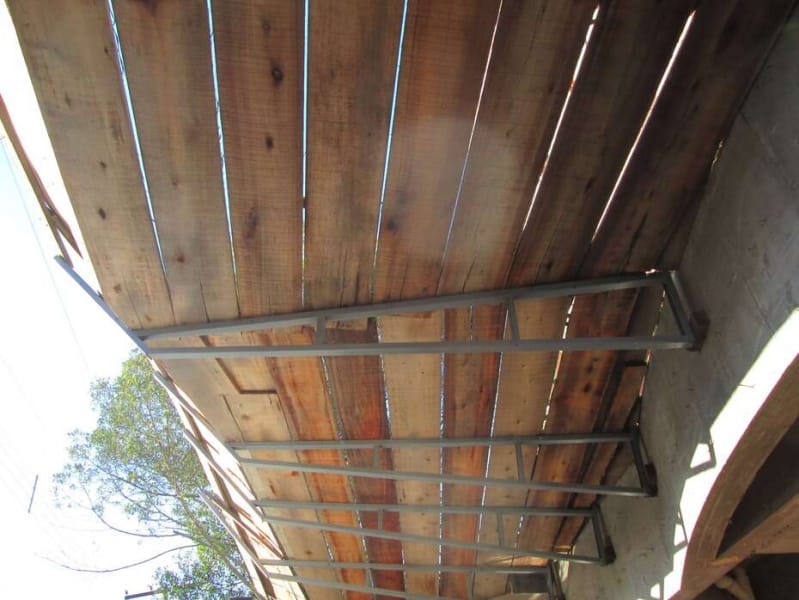

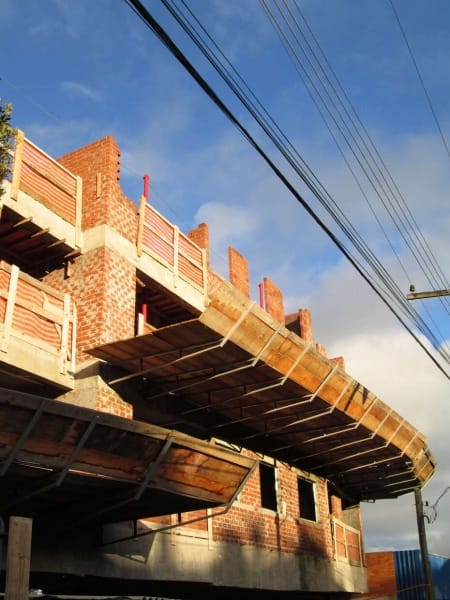

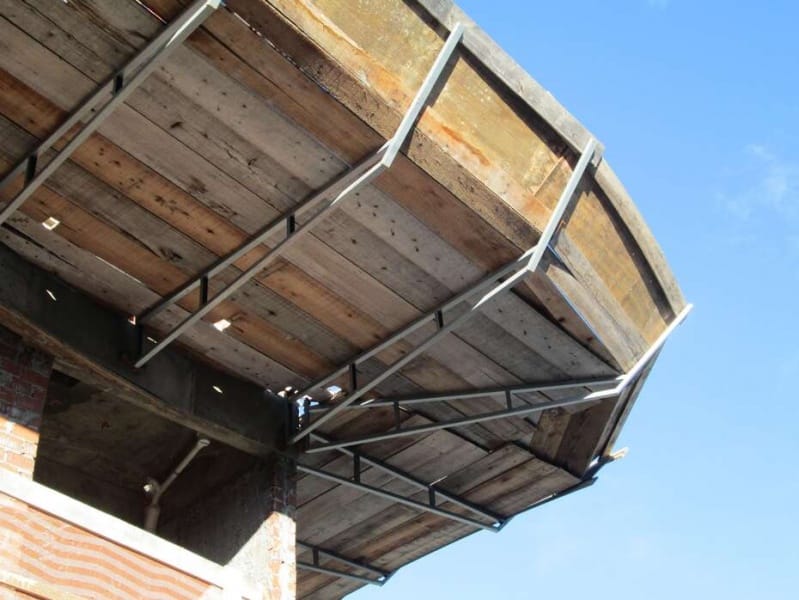

The Protection Trays are used to prevent material falling around the building, ensuring safety and higher productivity. The secondary model is used from the first belt of the Primary Trays, which should be installed every three floors.
- Hookless Option: The Primary Protection Tray can be fixed by Parabolt, when there are no lead-in waitings on the slab and with the Tray support when there is no waiting in the work to fix the Trays.
- Hook Option: Hook fastening system (Needs Bracket), are fixed in a bolt-on hold on the U-shaped slab, eliminating the need for pins in the lock.
TECHNICAL SPECIFICATIONS

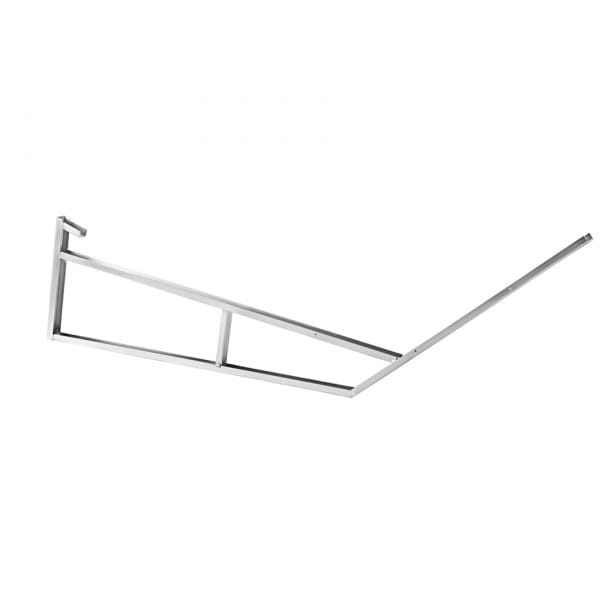

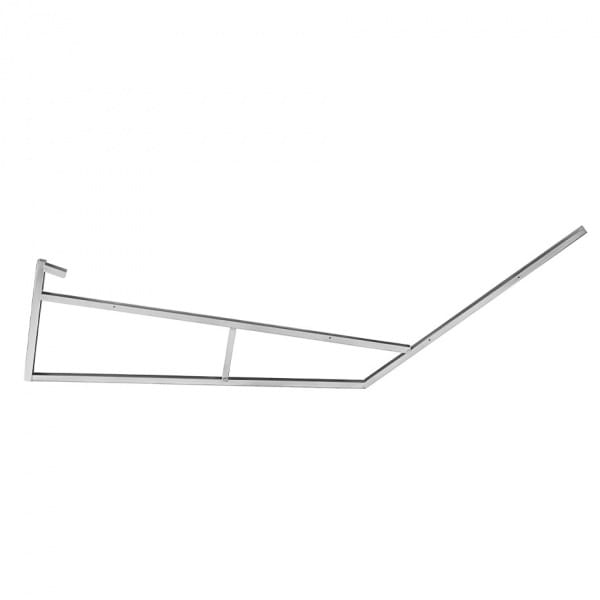

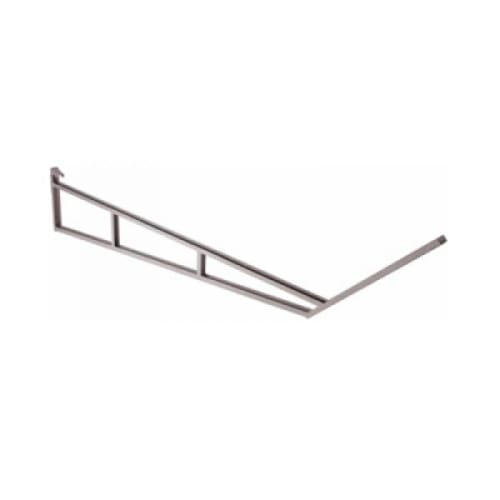

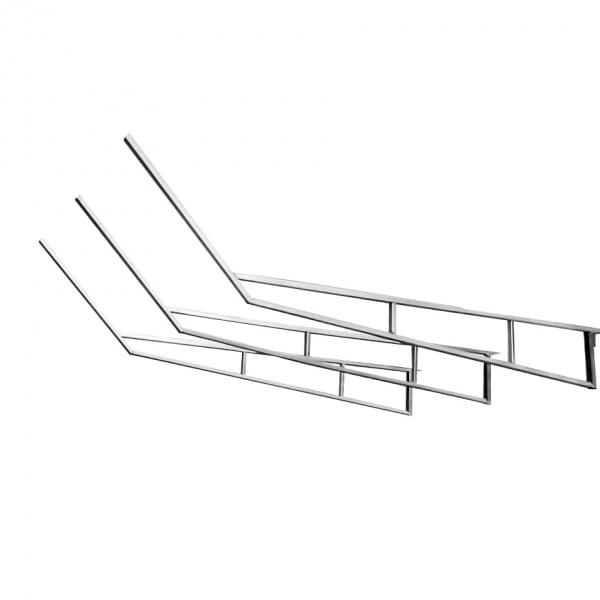

- Secondary Model: Length 1.40m + Complement 0.80m at 45 °
- Built in 2mm U profile
- Vertical support profile sheet metal 3,35mm
- 150kg distributed load capacity
- 2 OPTIONS: “Hook” (Need Support) or “No Hook” (Straight on Slab) Fastening System
- EPOXY Painting
- Tray, mandatory equipment in buildings above 4 floors.
- Recommended maximum spacing of 1.2m
- This equipment aims to protect against falling workers and projection of materials.

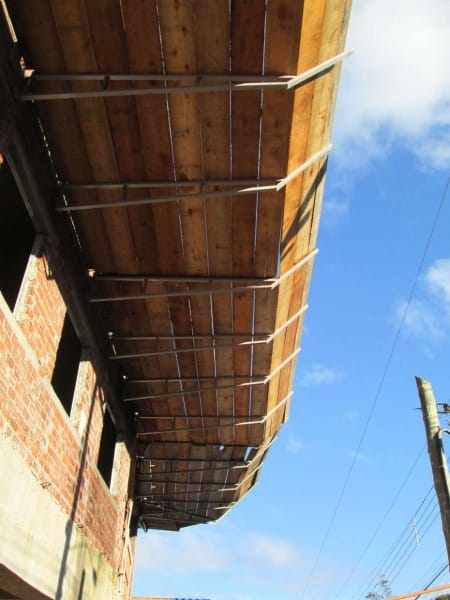

- Has opening for fitting and fixing the batten, which facilitates the fixing of Madeirit
ACCESSORY - Tray Holder - SB12
Used when there is no wait on site to fix Trays.

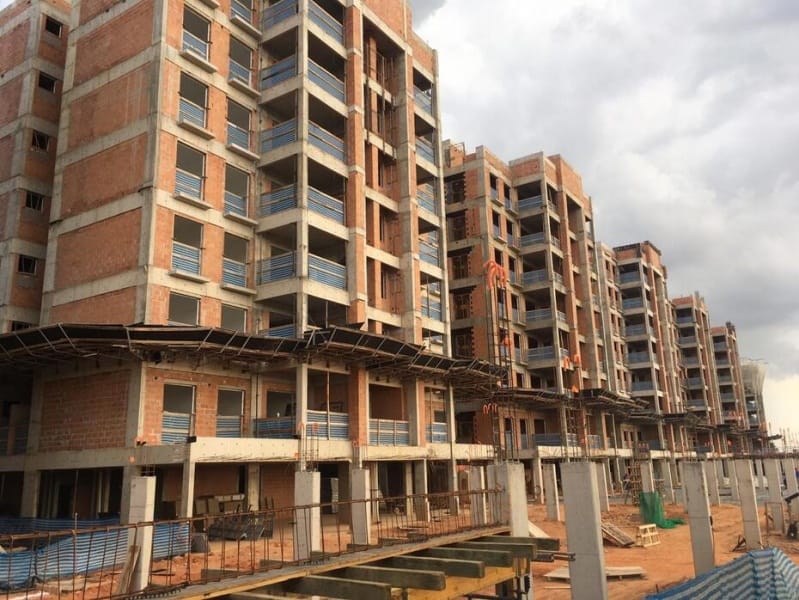

The secondary protection platform is an additional structure used in construction sites to complement the protection provided by the primary protection platform. It is installed at intermediate levels of the building to catch debris and materials that may escape the first layer of protection, enhancing overall safety.
The secondary protection platform must adhere to the guidelines of NR 18, which regulates safety conditions in construction sites. This standard specifies the need for devices to prevent falling materials, ensuring the safety of workers and the surrounding environment.
The installation of a secondary protection platform is recommended in multi-story constructions where the risk of falling debris is high. It complements the primary protection platform, increasing the effectiveness of containing materials that may fall from upper floors.
