Primary Protection Trays
The primary protection tray should be installed shortly after the first slab is cast, at a height equivalent to a ceiling height above ground level, and throughout the perimeter of the building.

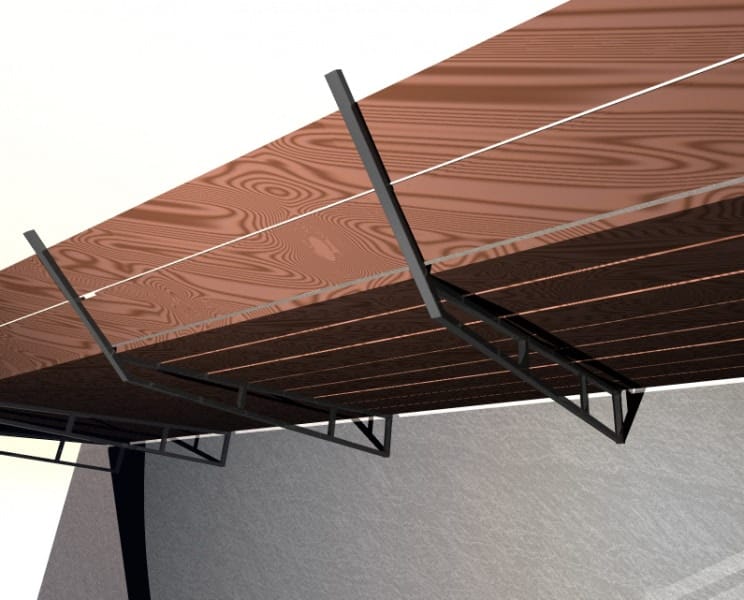

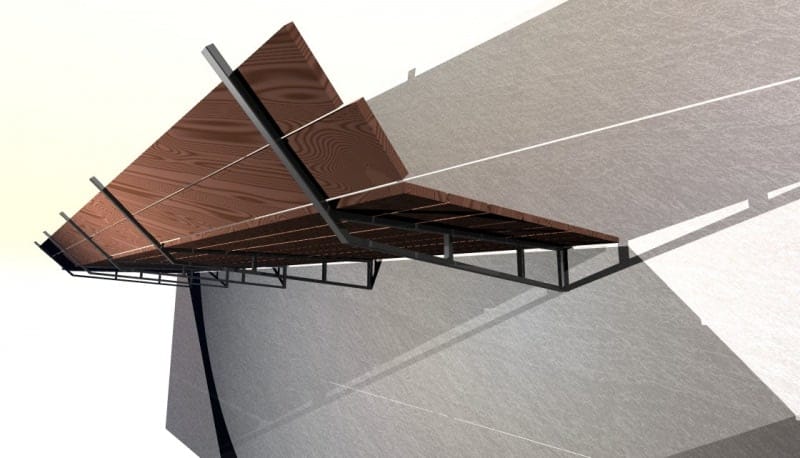

The Protection Trays are used to prevent material falling around the building, ensuring safety and higher productivity. The primary model should be installed shortly after the first slab is concreted, at a height equal to a ceiling height above ground level, and throughout the perimeter of the building.
- Hookless Option: The Primary Protection Tray can be fixed by Parabolt, when there are no lead-in waitings on the slab and with the Tray support when there is no waiting in the work to fix the Trays.
- Hook Option: Hook fastening system (Needs Bracket), are fixed in a bolt-on hold on the U-shaped slab, eliminating the need for pins in the lock.
TECHNICAL SPECIFICATIONS

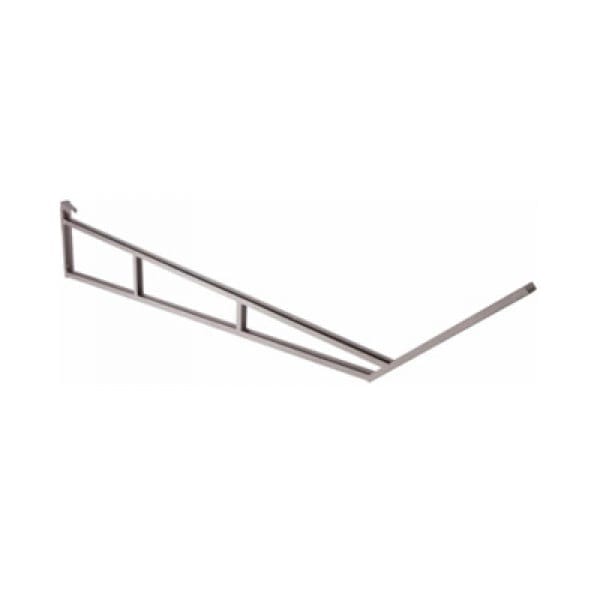

- Primary Model: Length 2,50m + length of 0,8m at 45 °
- Built in 2mm U profile
- Vertical support profile sheet metal 3,35mm
- 150kg distributed load capacity
- 2 OPTIONS: “Hook” (Need Support) or “No Hook” (Straight on Slab) Fastening System
- EPOXY Painting
- Tray, mandatory equipment in buildings above 4 floors.
- Recommended maximum spacing of 1.2m
- This equipment aims to protect against falling workers and projection of materials.
- Has opening for fitting and fixing the batten, which facilitates the fixing of Madeirit
ACCESSORY:
Tray Support - Used when there is no wait on site for Tray attachment.

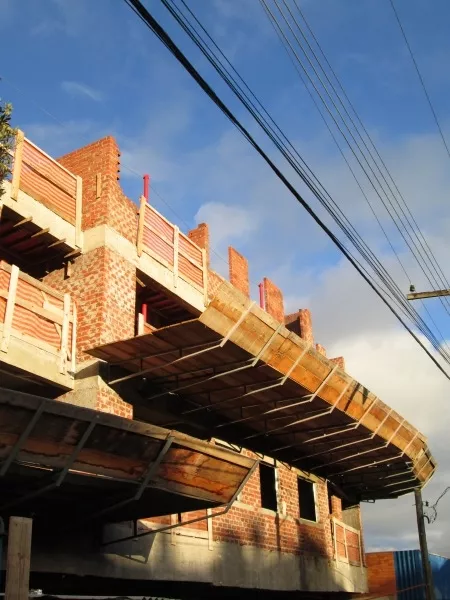

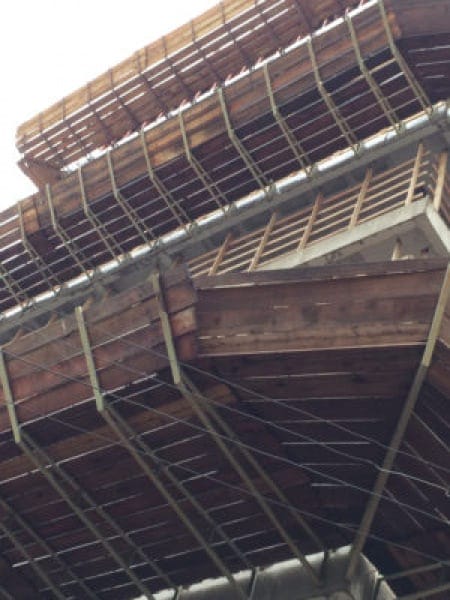

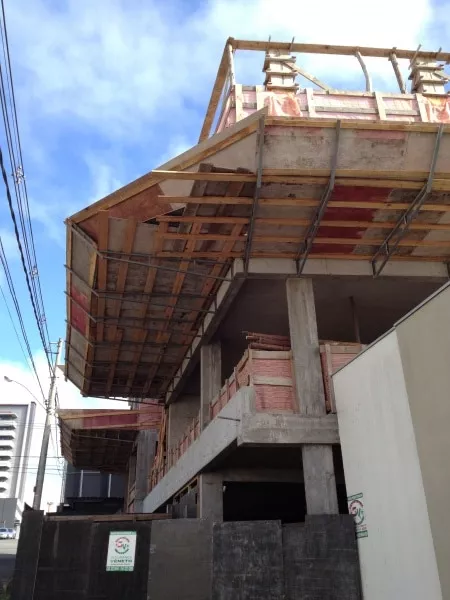

The primary protection platform, also known as a debris-catching platform, is a structure installed around the perimeter of buildings under construction to prevent the fall of materials and debris, ensuring the safety of both workers and pedestrians in the vicinity of the construction site.

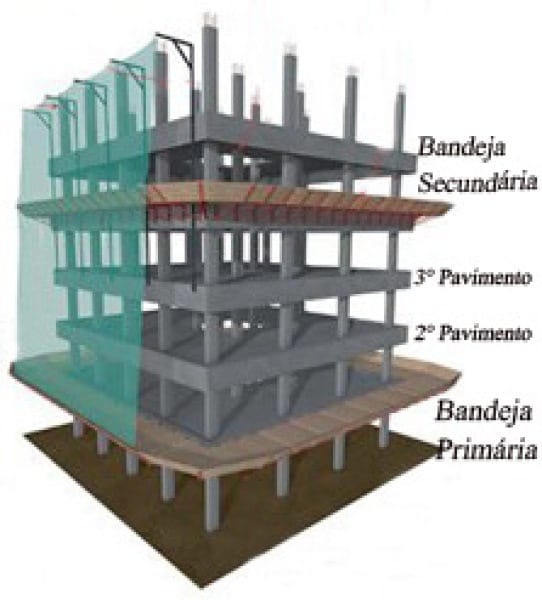

According to NR 18, the primary protection platform must have a minimum horizontal projection of 2.5 meters from the external face of the building, with an additional 0.80 meters extension inclined at 45° at the end. It should be installed at the height of the first slab, especially in buildings with more than four floors.
The use of the primary protection platform is mandatory to prevent accidents caused by falling objects during construction, protecting both workers and the general public. Its installation is a requirement of occupational safety standards, such as NR 18, which aims to minimize risks and ensure a safe working
